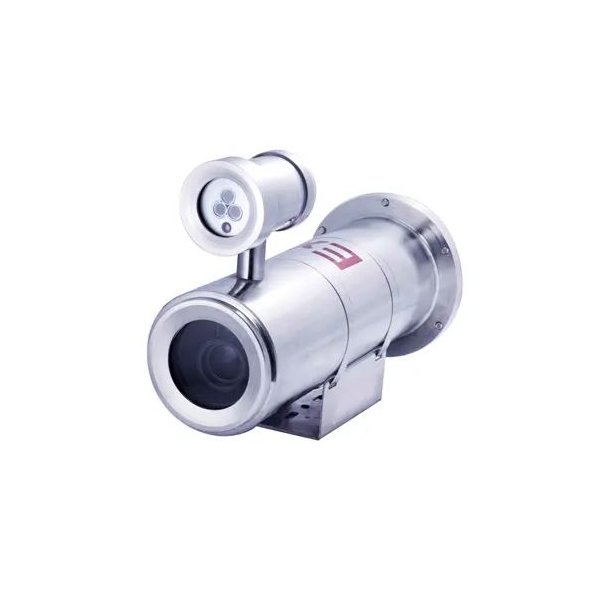

Explosion proof Camera Enclosure EX707PW
Explosion proof Enclosure EX707PW from KAIXUANhas met all strict explosion proof standard for explosive hazardous environment.
Features
- Explosion Proof Enclosure KX-EX707PW is certified to be used in hazardous locations.
- ATEX Zone 1&2 / 21&22
- Class I Division 1&2 / Class II Division 1&2 and all the rest except zone 0.
- inside size:Φ100*300mm window size:Ф65mm
- IR distance: 60m
- can assemble box camera, all-in-one camera
- apply to strong corrosive environment, Explosion-proof, anti-corrosion, waterproof
- Windows glass surface process by nano technology. non-stick oil/dusty/water
- Fixed focus or zoom camera can be loaded.
- Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time
- Usual power supply: AC220V/DC12V, other Power mode can be customized.
- Made of 304 stainless steel material. apply to strong corrosive environments
- Well design for Explosion-proof, anti-corrosion, waterproof, suitable for indoor and outdoor environment
Suitable application of Explosion proof Camera Enclosure EX707PW
- Can be used in extremely situation Such as petroleum, chemical industry, mine, military industry, medicine, oil depot, ships, drilling platform, gas stations, fireworks production, food processing and storage, offshore projects etc
Explosion proof standard of Explosion proof Camera Enclosure EX707PW
- ATEX Zone 1&2 / 21&22
- Class I Division 1&2 / Class II Division 1&2 and all the rest except zone 0.
ATEX
II 2G Ex d IIC T6 Gb
II 2D Ex tb IIIC IP68 T80℃ Db
Specifications
Ex-Level ATEX:
- II 2G Ex d IIC T6 Gb
- II 2D Ex tb IIIC IP68 T80℃ Db
Ingress protection level IP66
Temperature range -40℃～60℃
Relative humidity ≤95%（+25°C）
Atmospheric pressure： 80kpa～106kpa
Infrared distance 60M
Infrared switch When <0Lux, Auto open
Wavelength 850nm
Supply voltage PoE
Suitable environment Apply to explosive gas and combustible dust environment
Material 316L
Inlet interface specifications 2pcs M25*1.5 output (original G3/4)
External dimensions 380mm*144mm*232mm
inside dimension Φ100mm*300mm（length ）
Windows diameter Φ65
