NETIO Power Systems
| LAN RJ45 |
WiFi | IQRF | Power Outputs |
ZCS / ZVS smart switching |
Power measurement |
Web-based configuration |
RS-232 serial port |
NETIO Cloud | Scheduler function |
WatchDog function |
M2M APIs | Lua scripts | Mobile App | |
| 2x | - | - | 4 | ZCS | 22 values | Yes | Yes | Yes | Yes | Yes | 13 protocols | Yes | ||
| Yes | - | - | 4 | ZVS | - | Yes | - | Yes | - | - | XML, JSON, URL API, Modbus / TCP, Telnet, MQTT - flex, SNMPv1 |
- | NETIO Mobile 2 | |
| PowerBOX 3Px | Yes | - | - | 3 | ZVS | - | Yes | - | Yes | - | - | XML, JSON, URL API, Modbus / TCP, Telnet, MQTT - flex, SNMPv1 |
- | NETIO Mobile 2 |
| - | Int. | - | 1 | ZCS | 6 values | Yes | - | Yes | - | - | Modbus/TCP Telnet |
- | NETIO Mobile 2 | |
| PowerCable REST | - | Int. | - | 1 | ZCS | 6 values | Yes | - | Yes | - | - | XML, JSON, URL API |
- | NETIO Mobile 2 |
| PowerCable IQRF | - | - | Int. | 1 | ZCS | 6 values | - | - | Yes | - | - | IQRF | - | - |
| PowerCable MQTT | - | Int. | - | 1 | ZCS | 6 values | Yes | - | Yes | - | - | - | NETIO Mobile 2 | |
| PowerCable OEM (comming soon) |
- | Int. | - | 1 | ZCS | 7 values | Yes | - | Yes | - | - | On request | - | NETIO Mobile 2 |
| NETIO 4All |
Yes |
Ext | - | 4 | - | 22 values | Yes | - | Yes | Yes | Yes | 13 protocols | Yes | |
| NETIO 4 | Yes | Ext | - | 4 | - | - | Yes | - | Yes | Yes | Yes | 13 protocols | Yes |
PowerPDU 4PS
NETIO PowerPDU 4PS is a smart PDU (Power Distribution Unit) with four power outlets (4x IEC-320 C13).
Integration into third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the open API.
With the NETIO Cloud...
PowerBOX 3Px
NETIO PowerBOX 3Px is a professional electrical socket device with 3 outputs and LAN connectivity. Each output socket can be separately switched on or off over the web interface. Integration into third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks...
PowerCable MQTT 101x
NETIO PowerCable MQTT 101x is a professional WiFi power socket featuring open API for integration with cloud IoT services.
The output socket can be controlled (On/Off) and electricity consumption measured (A, Wh, TPF, V, ..) from any IoT service. The WiFi socket supports the MQTT-...
More about PowerCable MQTT 101x
PowerCable REST 101x
NETIO PowerCable REST 101x is a smart WiFi power socket for integration with third-party systems using an open API.
PowerCable REST features electrical measurements and control of the output using one of three http-based REST protocols - XML, JSON or URL API.
More about PowerCable REST 101x
PowerCable IQRF 901x
NETIO PowerCable IQRF 901x is a smart power extension cable that communicates over the IQRF LPWAN network (868 MHz).
The 230V/16A electrical socket features accurate electricity metering (A, V, W, TPF, kWh, Hz) and can be switched on and off with full IQRF Interoperable ...
More about PowerCable IQRF 901x
PowerCable Modbus 101x
NETIO PowerCable Modbus 101x is a smart WiFi power socket by NETIO products.
The output smart power outlet can be turned on/off over a web interface. The web interface also shows measured electrical values(V, A, kWh, W, Hz, TruePF).
More about PowerCable Modbus 101x
PowerPDU 4C
NETIO PowerPDU 4C is a small 110/230V PDU (Power Distribution Unit). Each of the four IEC-320 C13 outlets can be independently controlled (On / Off / Reset / Toggle).
Electrical parameters (A, W, kWh, TPF, V, Hz) are measured with high accuracy at each outlet. The device features two LAN ports (...
NETIO 4
NETIO 4 is a module with 4x 230V/8A remotely-controlled smart power sockets connected to LAN and WiFi.
Each socket can be remotely switched on/off.
NETIO 4 can be controlled remotely using many M2M API protocols (SNMP v3, SIP, XML/HTTPs, MQTT, CGI, ..).
NETIO 4All
NETIO 4All is the most feature-rich module with 4x 230V/8A remotely-controlled power sockets connected to LAN and WiFi.
Each socket can be individually switched on/off and its electricity consumption metered.
The device can be used as a WiFi AP (access point), and an external antenna can...
NETIO M2M API Interfaces
NETIO smart power sockets offer unique support for a wide range of various M2M (Machine to Machine) communication protocols. We strive to produce smart sockets that can communicate using all common protocols.
More about NETIO M2M API Interfaces
NETIO Mobile
The NETIO Mobile app allows you to control individual 110/230V sockets of one or more NETIO 4x (NETIO 4, NETIO 4All, NETIO 4C) smart socket products with a mobile phone or tablet.
Accessories
NETIO RM1 4C
Metal brackets to install one NETIO PowerPDU 4PS or NETIO PowerPDU 4C device into a 1U space in a 19” rack frame. The package includes M6 screws to fasten the device in the 1U position.
NETIO RM2 2x4C
Metal brackets to install two PowerPDU devices (4C or 4PS) into a 1U space in a 19” rack frame. The package includes M6 screws to fasten the devices in the 1U position.
NETIO RM3 4C vertical
Metal brackets to fasten one NETIO PowerPDU 4C/4PS device to a vertical bar in a rack frame. In a 76cm or wider cabinet, the PowerPDU 4C/4PS can be fastened to the outer side of the vertical bars to occupy zero U space.
NETIO RM4 4C universal
Universal metal brackets to fasten one PowerPDU 4PS or PowerPDU 4C device e.g. to horizontal bars in a rack frame.
NETIO RM5 N4
A metal bracket to fasten one NETIO 4 or NETIO 4All device to a vertical bar in a rack frame. In a 80cm or wider cabinet, the NETIO 4 / 4All can be fastened to the outer side of the vertical bars to occupy zero U space.

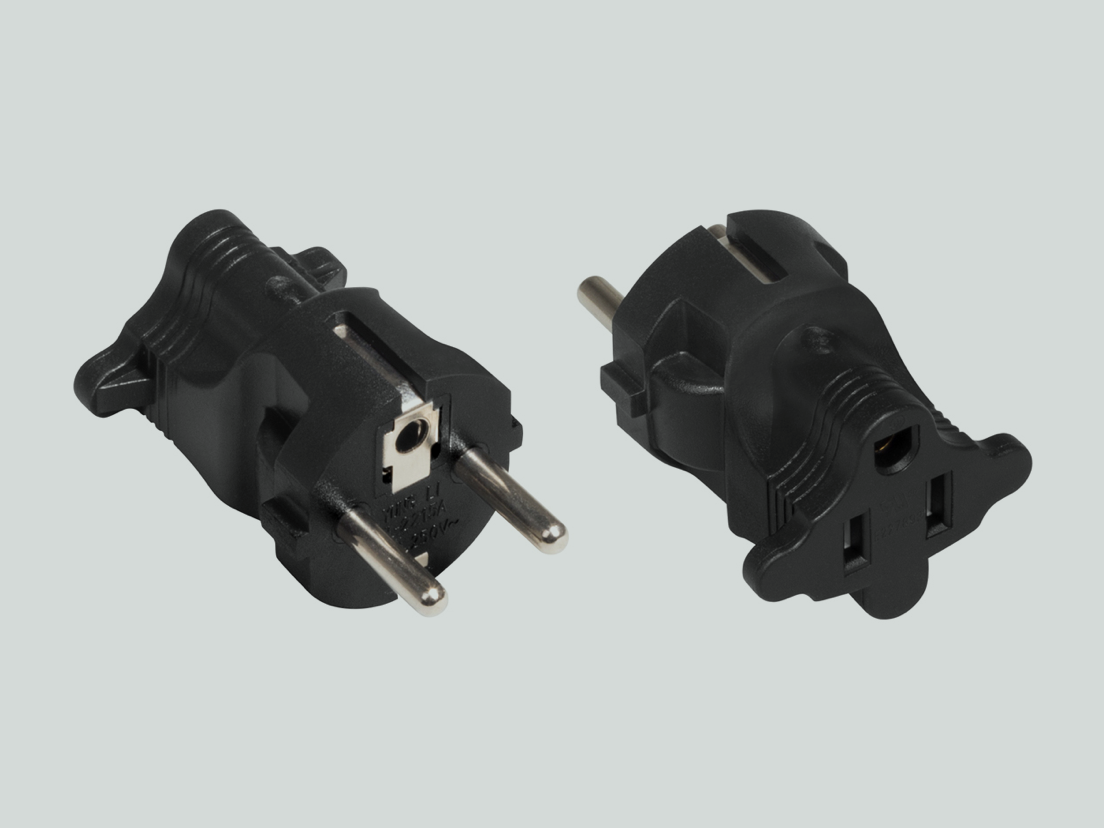

PWR adapter US to EUR
A plug adapter for a 110/230V power cable with a US (NEMA) plug. The adapter fits into European FR (Type E) or DE (Type F – Schuko) sockets as a Europlug (CEE 7/7).

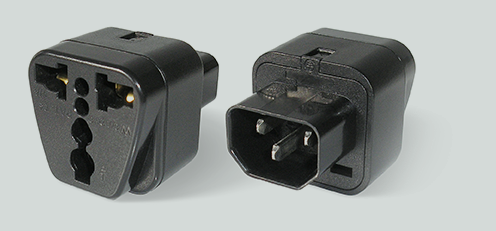

PWR adapter UNI to IEC-320
A plug adapter for US (NEMA), UK or other 110/230V cables. The input C14 connector fits into a IEC-320 C13 socket (e.g. the output of NETIO 4C).
