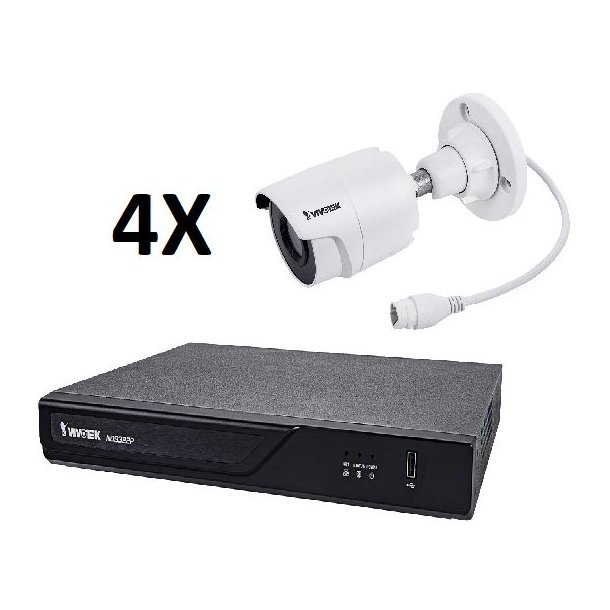

Vivotek Outdoor NVR KIT, ND9323P, 8 ch Incl. PoE and 4x IB9360-H 2MP Outdoor Bullet, 3,6mm

Vivotek Outdoor NVR KIT, ND9323P, 8 ch Incl. PoE and 4x IB9360-H 2MP Outdoor Bullet, 3,6mm

You must be logged in to be able to place orders

H.264, ONVIF, 1 pcs. Vivotek 8-ch NVR and 4 pcs. Outdoor Camera, Kit
Model/Product no.: ND9323P-IB9360-H-4
Products in the packet:
  • 1 x NVR 8 Chanel, 8x PoE, 2x HDD Max 16TB, 4K HDMI/VGA, Plug og Play Auto Setup.
  • 4 x 2 MP Outdoor Mini Bullet IP66, IK10 (-30c), 3.6mm, SNV, WDR Pro, Smart IR 30m, Smart stream, VivoCloud, 3 Streams 30fps 1920x1080, IP66, SD-kort.

Stock status: in stock


NVR Overview:

VIVOTEK’s ND9323P is a new generation H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.


The NVR features embedded 8x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.

Users of the NVR will also benefit from VIVOTEK’s cooperation with world-renowned cybersecurity company, Trend Micro. Through network cameras armed with Trend Micro's anti-intrusion software, VIVOTEK unites high security and robust network surveillance to secure lives and protect data across diverse applications.

• H.265/H.264 Compression Technology
• 4K Display for Clear and Detailed Monitoring
• Live and Playback Fisheye Dewarp
• Core+ 3.0: Trend Micro IoT Security & Cybersecurity Management, Smart Search II, Smart VCA Event Search, VCA Counting Solution
• VIVOTEK's Smart Stream II to Optimize Bandwidth Efficiency
802.3at/af Compliant PoE port x 8
• RAID 0, 1 Supported to Prevent from Recording Data Loss
• Multiple Browsers Supported: IE, Chrome and Firefox on both Windows & macOS
• Supports VCA Counting Solution


Datasheet
Overview
Specifications
Downloads
Support
Accessories





Camera Overview:
VIVOTEK’s IB9360-H is a H.265 outdoor bullet network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9360-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The IB9360-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9360-H is encased in robust IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9360-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenes



Key Features
• H.265 Compression Technology
• 30 fps @ 1920x1080 (WDR Pro on)
• SNV (Supreme Night Visibility) for Low Light Conditions
• WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
• Smart Stream III to Optimize Bandwidth Efficiency
• Built-in IR Illuminators, Effective up to 30 Meters
• Trend Micro IoT Security
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage





Data Sheet

Overview

Specifications

Download

Stock Location DSV Horsens
